| AC/Heat Duct Air Purification System |
| |

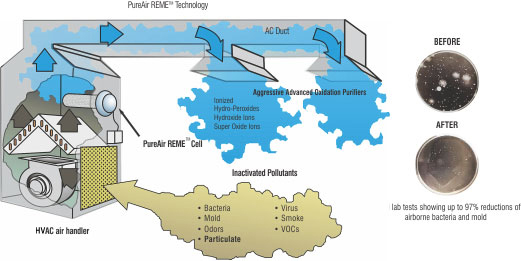

The PureAir REME™ or Reflective Electro Magnetic Energy utilizes an electromagnetic energy cell to create ionized Hydro-Peroxides, Superoxide Ions and Hydroxide Ions. These all are friendly oxidizers made from oxygen and humidity and revert back to oxygen and hydrogen after oxidation of the pollutant. This purifying plasma is propelled into the HVAC duct or plenum by a silent plasma propulsion module that has no moving parts, yet propels the plasma at 2 cfm. The purifying plasma will be propelled through the ducts whether the fan is on or not.
The PureAir REME™ Advanced Oxidation Technology is a group of Oxidants known as Hydro-Peroxides. Hydro-Peroxides have been a common part of our environment for over 3.5 billion years. Hydro-Peroxides are created in our atmosphere whenever three components are present: Oxygen molecules, water vapour and energy (electro-magnetic).
The REME™ cell incorporates a device that utilizes high voltage to ionize, or electrically charge, molecules of friendly oxidizers (same as PureAir PHI™ cell). During operation PureAir REME™ cell is designed to generate primarily negative ions (particles that temporarily contain an extra electron, causing the entire molecule to possess a negative electrical charge) as well as positive ions that other particulate matter are attracted to. It cleans the air by charging airborne oxidized particles.
PureAir REME™ has the ability to charge to super charge these Hydro-Peroxides or Ionize them into Ionized – Hydro-Peroxides. Ionized – Hydro-Peroxides are effective at destroying harmful microbial in the air and on surfaces. As oxidants, they do this by either destroying the microbe through a process known as cell lysing or by changing its molecular structure and rendering it harmless (which is the case in VOC's and odors). The amount of Hydro-Peroxides required to accomplish this task in a conditioned space is well below the level that is constantly in our outside air. |
| |
 |
| |
| Sneeze Test- REME™ |
| |
A testing protocol concept was used which included a “Sneeze Simulation Machine” and “Sneeze” chamber. A sneeze can travel upto 100 mph, therefore lung capacity, sneeze pressure, and liquid volume had to be monitored to property simulate a human sneeze. This was accomplished and the test proceeded with outstanding results. An average of 99% reduction of microbials was achieved with REME™ in a double blind test, at 3 feet from the sneeze source. This is clearly not a medically supervised test of protocol. However, from a practical point, it was definitely providing some kill at the source and will provide level of protection.
Tested by : Kansas State University, Inactivation 99% |
| |
 |
| |
| PureAir REME™ Specifications |
| |
| Hydro Peroxides Distribution : Distributed through Air Handler |
| Super Oxide Ion Distribution : Distributed through Air Handler |
| Hydroxide Ion Distribution : Distributed through Air Handler |
| Installation : Installed in HVAC Duct or Plenum |
| Electrical : 220 Volts |
| Materials : Polymers |
| Warranty : 1 Year |
| REME™ Cell Replacement : Recommended after 2 Years |
|
| |
The PureAir REME™ unit size is scaled to accommodate the various air flow rates to different HVAC system. So, locate the air blower size in cubic feet per minute (CFM) of the HVAC system that is intended to be installed in the system, and then pick the model number that corresponds to that flow rate.
Note : It is recommended these units be installed by a licensed electrician. |
| |
| Item HVAC Air Blower Size Dimensions Ship Wt. |
| PA-HVAC-REME-305" 4000 to 6500 CFM 12" probe / 5.5 Dia." plate 3 lbs |
| PA-HAVC-REME-305”HO 6500 to 10000 CFM 12" probe / 5.5 Dia," plate 4 lbs
|
|
| |
| REME™ Drastically Reduces |
| |
| Bacteria |
 |
| Mold |
|
| Virus |
|
| VOC’s |
|
| Odors |
|
|
